Featuring:
- Compact Ascetically Pleasing Design, Great For Urban Environments
- Silent Operation (~4.5 dB at 5ft)
- Bird Friendly (appears as a solid object while in rotation)
- Produces Power in 100+ mph winds that would obliterate most other
turbines
- Robust Single Moving Piece Direct Drive Generator
- Maintenance Free
- 10 Year Warranty
PacWind VAWT�s are self starting in very low wind speeds and self
regulating in mid to high winds leading to an incredibly high power
output and efficiency, while still being silent, stable, and safe. All
PacWind VAWT products are covered by U.S. Patent # US 7,109,599 B2 and
Patents Pending.
Alpha Series

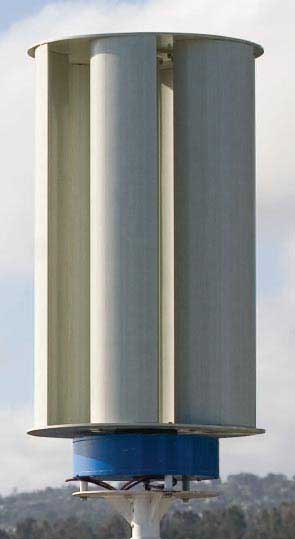

The Alpha Series includes the 500w Seahawk and the 5kw Aeolian which
are ideal for low to moderate wind conditions. The units are
stackable up to 5 units for additional power. Great when paired with
solar power.

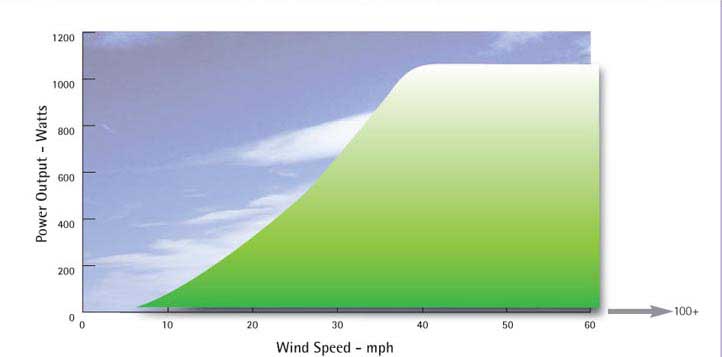

Features:
- 500w Rated Power
- Cut-in speed of 7mph.
- No cut-out speed.
- Cage dimensions of 30�d x 48�h
- Ideal for homes, boats, buildings,
- lighting, emergency power,
- remote power
- Available stacked in tower configurations
- Great in low wind conditions.
- Safe in all wind conditions
Physical Specifications:
Cage Height 48 inches
Cage Diameter 30 inches
Cage Weight 60 pounds
Cage Rotation Speed 0 to 600 RPM Peak
Generator Height 5.75 inches
Generator Diameter 18.5 inches
Generator Weight 79 pounds
Sound (Noise) Pressure Level 4.5 dB (at
5ft)
Download
Brochure
Hazardous Materials RoHS
Compliant
Download
Manual
CAll FOR PRICING AND INSTALLATION (951) 272 0050 Ext 224
Back to top

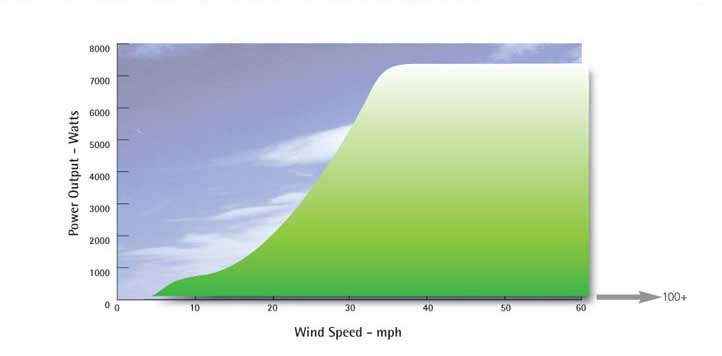

Features:
- 5kw Rated Power
- Cut-in speed of 3mph.
- No cut-out speed.
- Cage dimensions of 120�d x 60�h
- Ideal for: homes, buildings,
- emergency power, remote power
- Available stacked in tower configurations
- Great in low wind conditions.
- Safe in all wind conditions.
Physical Specifications:
Cage Height 60 inches
Cage Diameter 120 inches
Cage Weight 275 pounds
Cage Rotation Speed 0 to 500 RPM Peak
Generator Height 14.5 inches
Generator Diameter 33.5 inches
Generator Weight 300 pounds
Sound (Noise) Pressure Level 5 dB (at 5ft)
Hazardous Materials RoHS Compliant
Download
Brochure
CAll FOR PRICING AND INSTALLATION
(951) 272 0050 Ext 224
Back to top
Delta Series

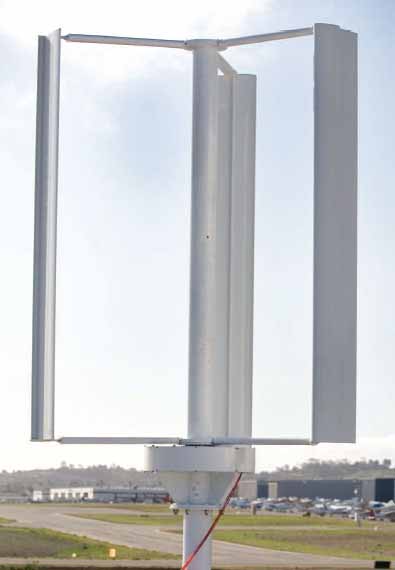

The Delta Series include the 2kw Delta I and the 10kw Delta II which
are ideal for moderate to high wind conditions. In moderate winds, both
of the Delta Series designs transition from a drag mode to a nearly
pure lift mode, equating to 4-fold surge in power output. These model
are also great paired with solar power.

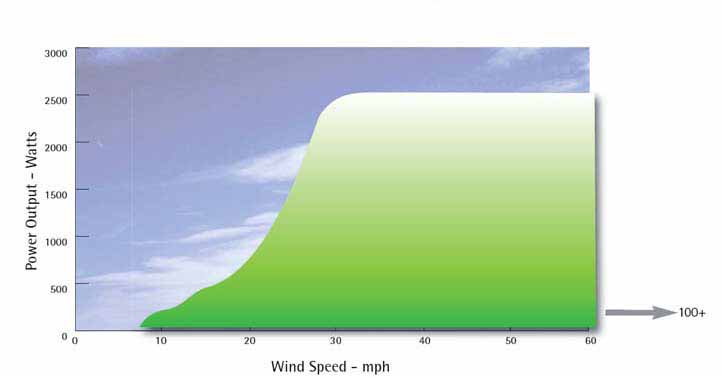

Features:
- 2kw Rated Power
- Cut-in speed of 8mph.
- No cut-out speed.
- Cage dimensions of 78�d x 48�h
- Ideal for: homes, boats, buildings,
- emergency power, remote power
- Available stacked in tower configurations
- Great in moderate to high wind
- conditions.
- Safe in all wind conditions.
Physical Specifications:
Cage Height 48 inches
Cage Diameter 79 inches
Cage Weight 47 pounds
Cage Rotation Speed 0 to 600 RPM Peak
Generator Height 5.75 inches
Generator Diameter 18.5 inches
Generator Weight 79 pounds
Sound (Noise) Pressure Level 4.5 dB (at 5ft)
Hazardous Materials RoHS Compliant
Downlaod
Brochure
CAll FOR PRICING AND INSTALLATION
(951) 272 0050 Ext 224
Back to top

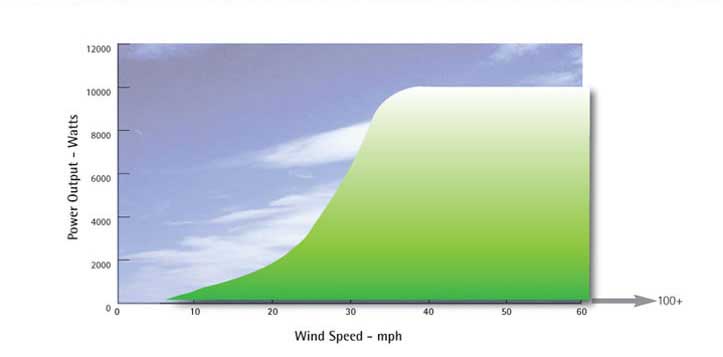

Features:
- 10kw Rated Power
- Cut-in speed of 6mph.
- No cut-out speed.
- Cage dimensions of 96�d x 120�h
- Ideal for: homes, buildings,
- emergency power, remote power,
- utility wind projects
- Available stacked in tower configurations
- Great in moderate to high wind
- conditions.
- Safe in all wind conditions.
Physical Specifications:
Cage Height 120 inches
Cage Diameter 96 inches
Cage Weight 200 pounds
Cage Rotation Speed 0 to 500 RPM Peak
Generator Height 14.5 inches
Generator Diameter 33.5 inches
Generator Weight 300 pounds
Sound (Noise) Pressure Level 15 dB (at 5ft)
Hazardous Materials RoHS
Compliant Download
Brochure
CALL FOR PRICING AND INSTALLATION (951) 272 0050 Ext 224
